A
= Red #244 Oil level sensor
A = Red #244 Oil level sensor
B = White #76 From Ecu/Relay and powers fuel pump
C = Yellow #74 From Ecu to dashboard warning light
D = Blue #46 Starter circuit

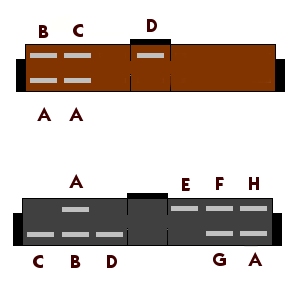

Black Connector
A
= Yellow #52 Reversing light switch on gearbox
A = Yellow #52 Reversing light switch on gearbox
B = Green #112 From coil to tacho
C = Earth
D = Blue # Ignition switched live
E = Brown #7a Alternator to dash light
F = Blue #30 Oil pressure sender to dash
G = Red #f Oil temp sender to warning gauge
H = Red #47 Water temp sender to warning gauge
Black Power Connector
1 Yellow wire and 2 White wires all go to permanent power
